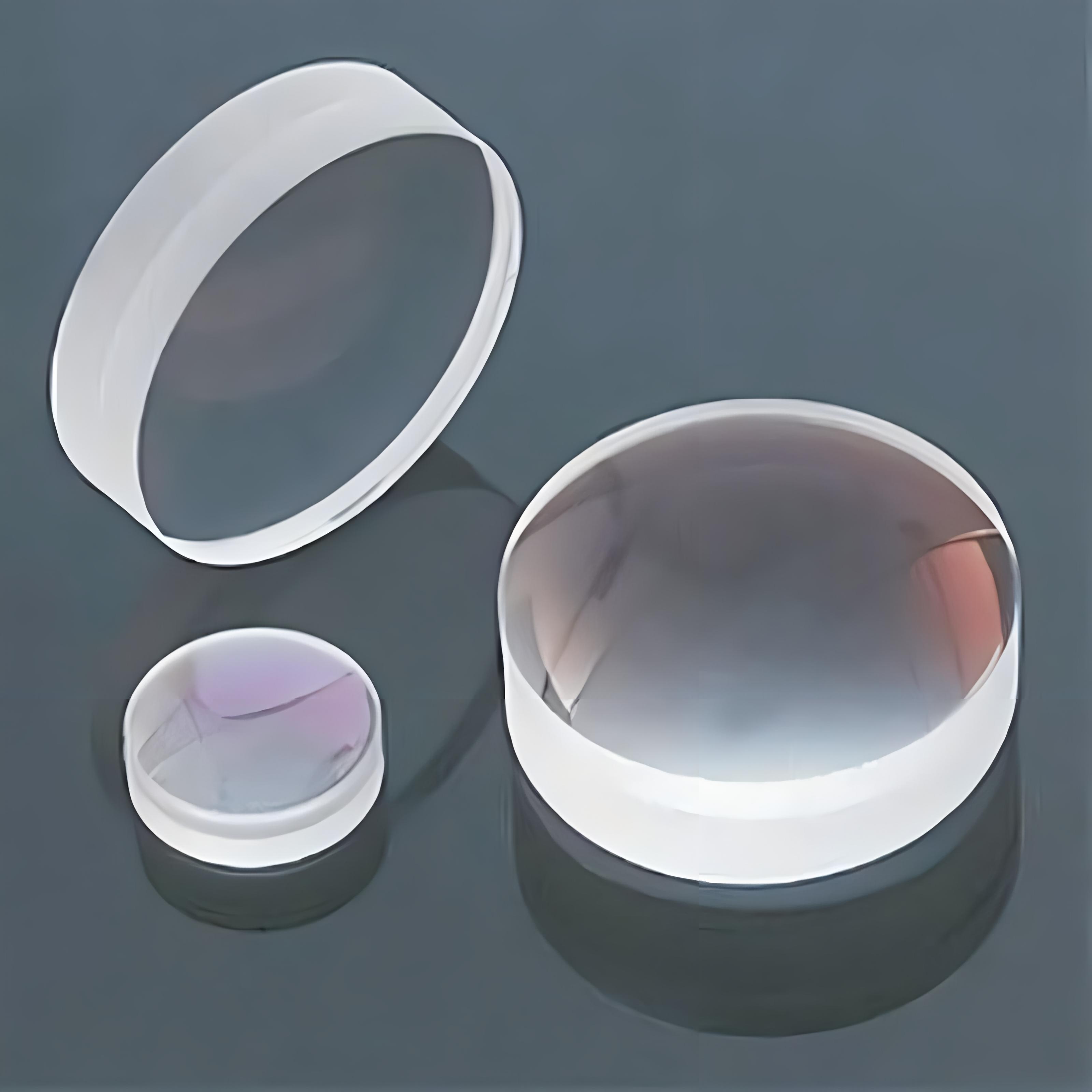

玻璃非球面光學鏡片



 規格列錶

  • Part No. (部品号)
 Material
(材料)		 (nm)
设计波长		 NA
数值孔径		 EFL(mm)
(焦距)		 (mm)
直径		 (mm)S
中心厚度		 Laser
Window(mm)
  • AD-EGA-10.5-15.26-639
 L-BAL42 639 0.300 15.260 10.500 3.000 BK7, t=0.30
  • AD-EGA-9.5-24.06-785
 D-ZK2 785 0.160 24.060 9.500 2.350 BK7, t=0.25
  • AD-EGA-8-11.18-635
 D-ZK2N 635 0.310 11.180 8.000 2.660 BK7, t=0.25
  • AD-EGA-6.35-10-786.5
 D-ZK2N 635 0.280 10.000 6.350 3.000 BK7, t=0.25
  • AD-EGA-6-10-780 980 定制R<0.2%
 D-ZK2N 635 0.280 10.000 6.000 3.000 BK7, t=0.25
  • AD-EGA-5.5-8.8-635
 L-BAL42 635 0.260 8.800 5.500 2.400 ***
  • AD-EGA-8-22.58-532
 D-ZK2N 532 0.150 22.580 8.000 2.350 BK7, t=0.25
  • AD-EGA-3-4.5-633
 D-ZK3 633 0.300 4.500 3.000 1.780 BK7, t=0.25
  • AD-EGA-3-6-635
 D-ZK3 635 0.210 6.000 3.000 1.500 BK7, t=0.25
  • AD-EGA-3-3.76-500 850
 D-ZK3 635 0.330 3.760 3.000 1.500 BK7, t=0.25
  • AD-EGA-3-3.76-400-700
 D-ZK3 635 0.330 3.760 3.000 1.500 BK7, t=0.25
  • AD-EGA-3-3.76-900-1000
 D-ZK3 635 0.330 3.760 3.000 1.500 BK7, t=0.25
  • AD-EGA-4-4-405
 D-ZK3 405 0.400 4.000 4.000 2.000 BK7, t=0.25
  • AD-EGA-10-16.7-976
 L-BAL42 976 0.265 16.700 10.000 3.225 ***
  • AD-EGA-3-5-780 1000
 D-ZK3 915 0.260 5.000 3.000 1.530 ***
  • AD-EGA-4.7-6.16-780 1000
 D-ZK3 780 0.300 6.160 4.700 3.480 BK7, t=0.275
  • AD-EGA-6.5-8.95-780 1000
 L-BAL42 635 0.300 8.950 6.500 2.360 BK7, t=0.25
  • AD-EGA-2-5-1550
 D-ZK3 1550 0.150 5.000 2.000 0.990 ***
  • AD-EGA-2.4-1.14-1300
 D-ZLAF52LA 1300 0.43/0.124 1.140 2.400 1.239 BK7, t=0.30
  • AD-EGA-2.4-1.14-1310
 D-ZLaF52LA 1310 0.550 1.140 2.400 1.240 ***
  • AD-EGA-2.4-1.45-780
 D-ZK3 780 0.560 1.450 2.400 1.000 ***
  • AD-EGA-2.79-6.1-1550
 D-ZK3 1550 0.180 6.100 2.790 1.930 ***
  • AD-EGA-3-2-780
 D-ZK3 780 0.500 2.000 3.000 2.000 BK7, t=0.25
  • AD-EGA-3-3.2-633
 D-ZLaF52LA 633 0.370 3.200 3.000 2.000 ***
  • AD-EGA-4-2.73-780
 D-ZLaF52LA 780 0.550 2.730 4.000 1.430 PC, t=1.20
  • AD-EGA-4.5-2.75-830
 D-ZLaF52LA 830 0.640 2.750 4.500 2.240 ***
  • AD-EGA-4.5-8-915
 L-BAL42 915 0.220 8.000 4.500 2.000 ***
  • AD-EGA-5.42-4.47-780
 D-ZK3 780 0.470 4.470 5.420 3.450 PC, t=1.20
  • AD-EGA-6.325-3.1-830
 D-ZK3 830 0.670 3.100 6.325 3.214 ***
  • AD-EGA-6.325-4.02-408
 D-LAK6 408 0.600 4.020 6.325 2.900 BK7, t=0.25
  • AD-EGA-6.325-13.85-650
 D-ZK3 650 0.180 13.850 6.325 2.773 ***
  • AD-EGA-6.33-3.9-780
 D-ZK3 780 0.500 3.900 6.330 3.050 BK7,t=1.2
  • AD-EGA-6.33-4.05-445
 D-ZK3 445 0.630 4.050 6.330 3.100 PC, t=1.20
  • AD-EGA-6.33-4.5-1550
 D-ZLaF52LA 1550 0.600 4.500 6.330 2.750 ***
  • AD-EGA-6.35-6.43-830
 D-ZK2N 830 0.430 6.430 6.350 3.110 BK7, t=0.25
  • AD-EGA-6.5-12.06-635
 L-BAL42 635 0.220 12.060 6.500 2.360 BK7, t=0.25
  • AD-EGA-6.5-15.29-780
 D-ZK3 780 0.160 15.290 6.500 2.209 ***
  • AD-EGA-6.5-18.39-780
 D-ZK3 780 0.150 18.390 6.500 2.180 BK7, t=0.25
  • AD-EGA-7.2-6.24-780
 D-ZK3 780 0.400 6.240 7.200 5.360 BK7, t=0.275
  • AD-EGA-7.2-10.99-633
 D-ZK3 633 0.280 10.990 7.200 5.032 BK7, t=0.25
  • AD-EGA-9.936-8-780
 D-ZK3 780 0.500 8.000 9.936 3.430 BK7, t=0.25
  • AD-EGA-10-19-915
 L-BAL42 915 0.230 19.000 10.000 3.140 ***
  • AD-EGA-15-11.24-587
 D-ZK3 587 0.620 11.240 15.000 7.000 ***
  • AD-CGA-3-6-635
 L-BAL35 620-640 0.196 6.000 3.000 1.500 ***
  • AD-HKA-6-10-635
 D-ZK3 635 0.220 10.000 6.000 2.360 ***
  • AD-EGA-10.5-15.26-640
 L-BAL43 850.8439 0.284 7.501 6.732 3.318 BK7, t=0.30



更多規格請聯系客服
